RMS male to M19x0.75 female thread adapter, black

1 4
★ ★ ★ ★ ★
41 Reviews
€30,90 EUR
€30,90 EUR
Sale Sold out

In stock

SKU#:763461170872

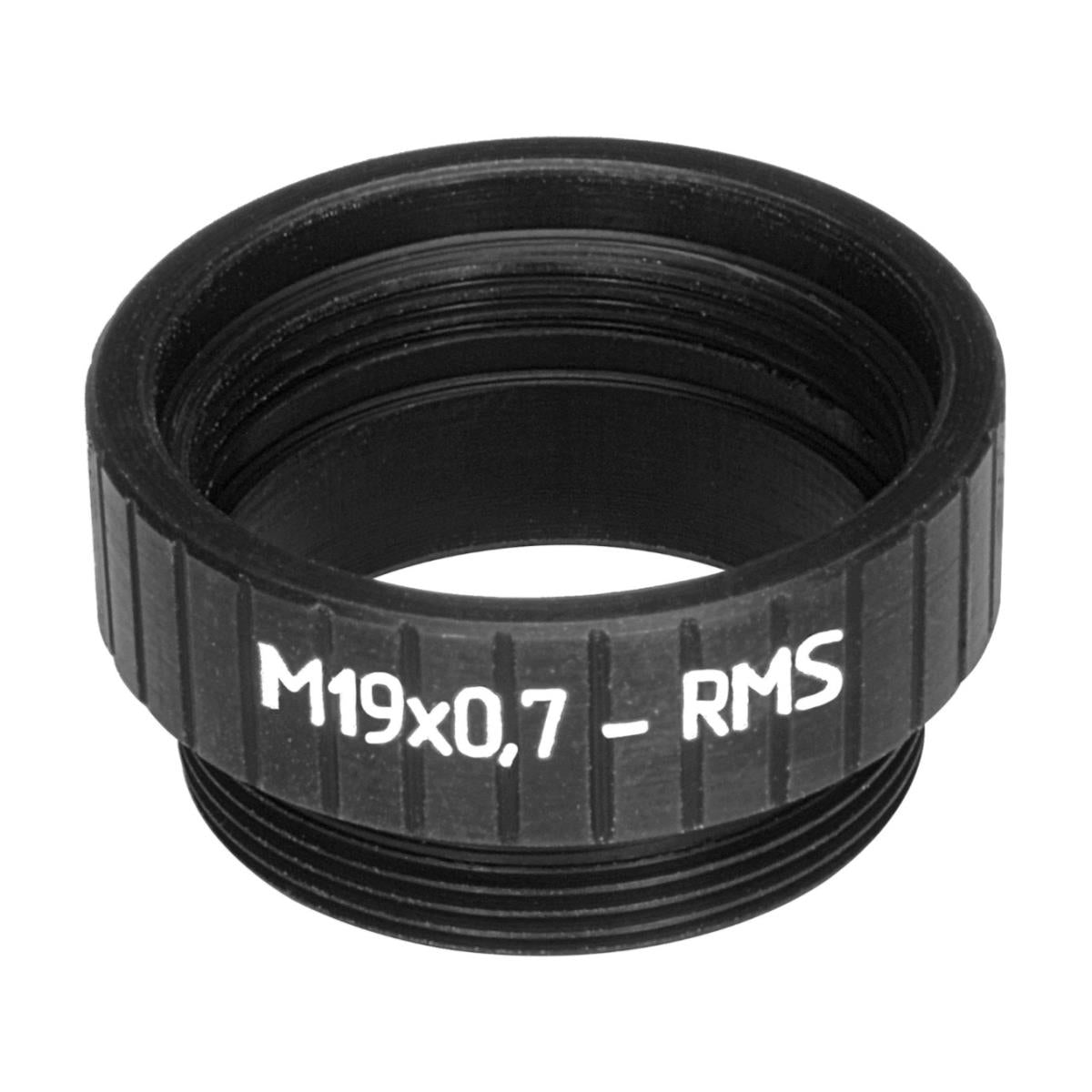

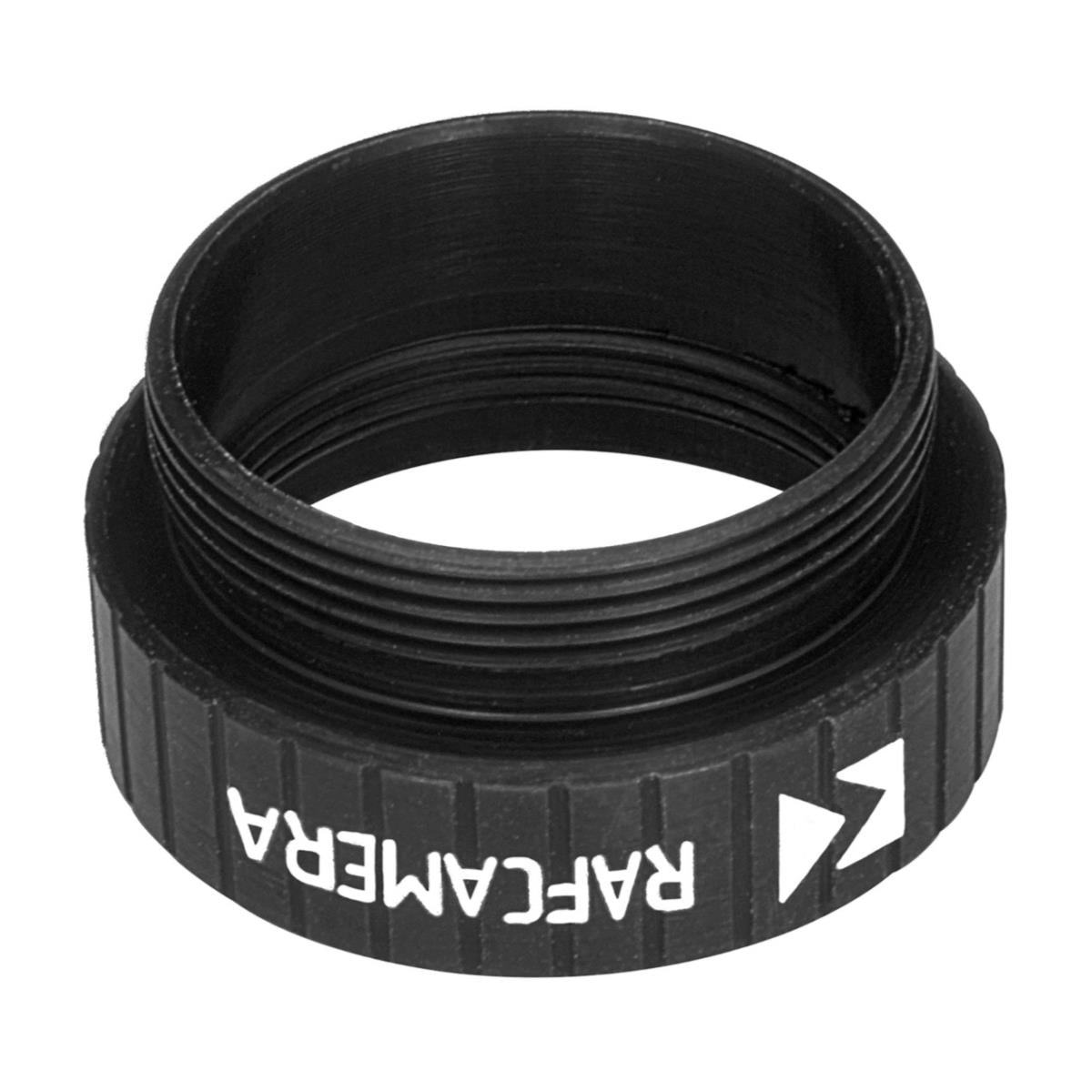

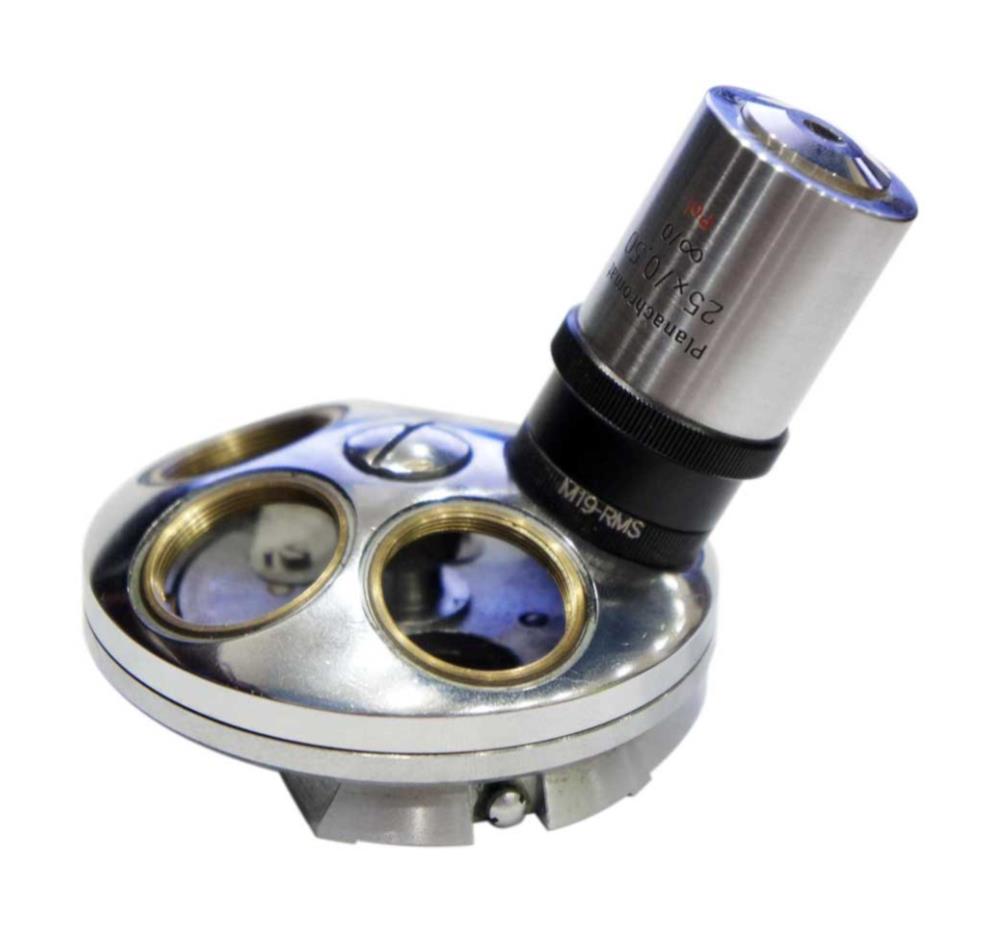

This adapter allows using microscope objectives with M19x0.75 thread on RMS microscope heads.
View full details

  • Details
  • More Information
  • Reviews
  • Questions

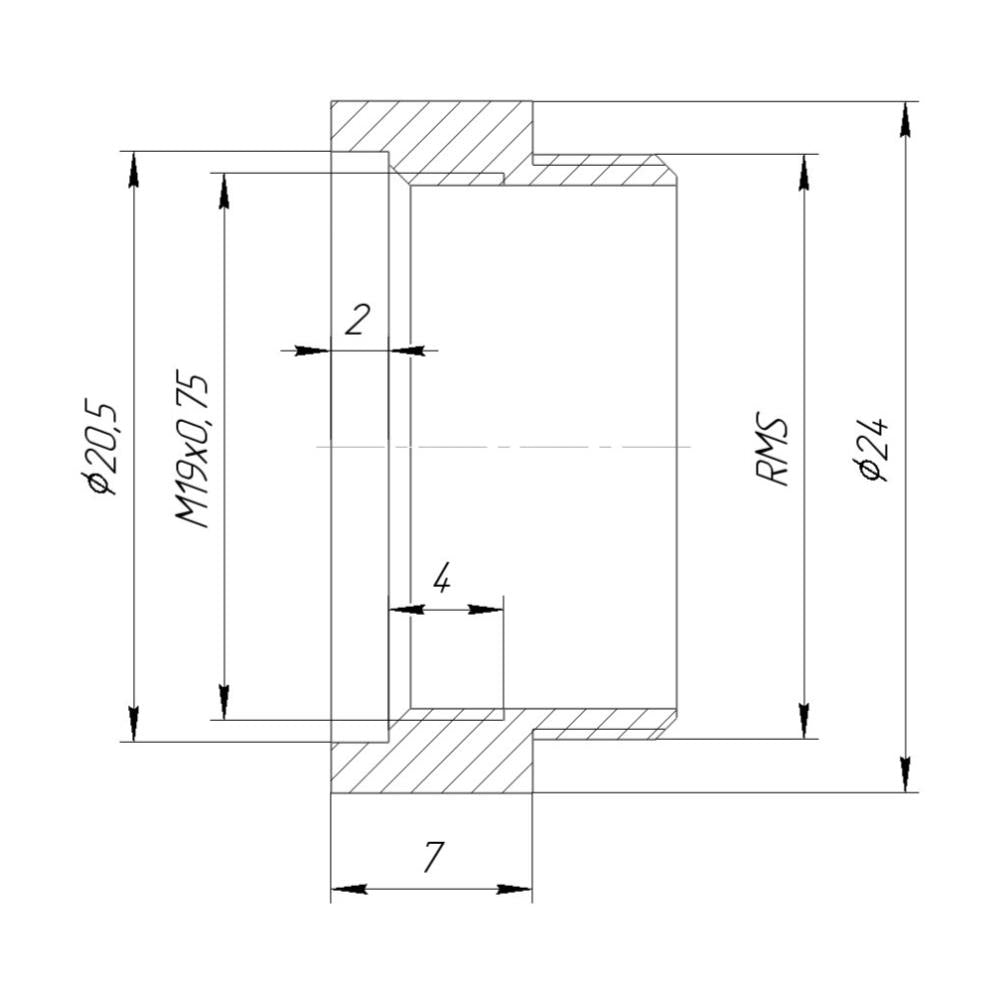

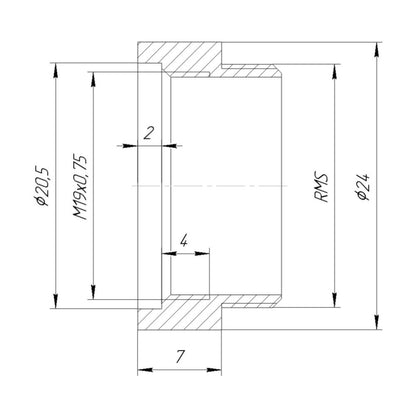

  • Front side - M19x0.75 female thread
  • Rear side - RMS (4/5″-36tpi) male thread
  • Max. diameter - 24 mm
  • Distance between flanges - 7 mm
  • Weight - 3 g

This adapter allows using microscope objectives with M19x0.75 thread on RMS microscope heads.

Made of anodized aluminium.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - M19x0.75 female thread
  • Rear side - RMS (4/5″-36tpi) male thread
  • Max. diameter - 24 mm
  • Distance between flanges - 7 mm
  • Weight - 3 g

This adapter allows using microscope objectives with M19x0.75 thread on RMS microscope heads.

Made of anodized aluminium.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
