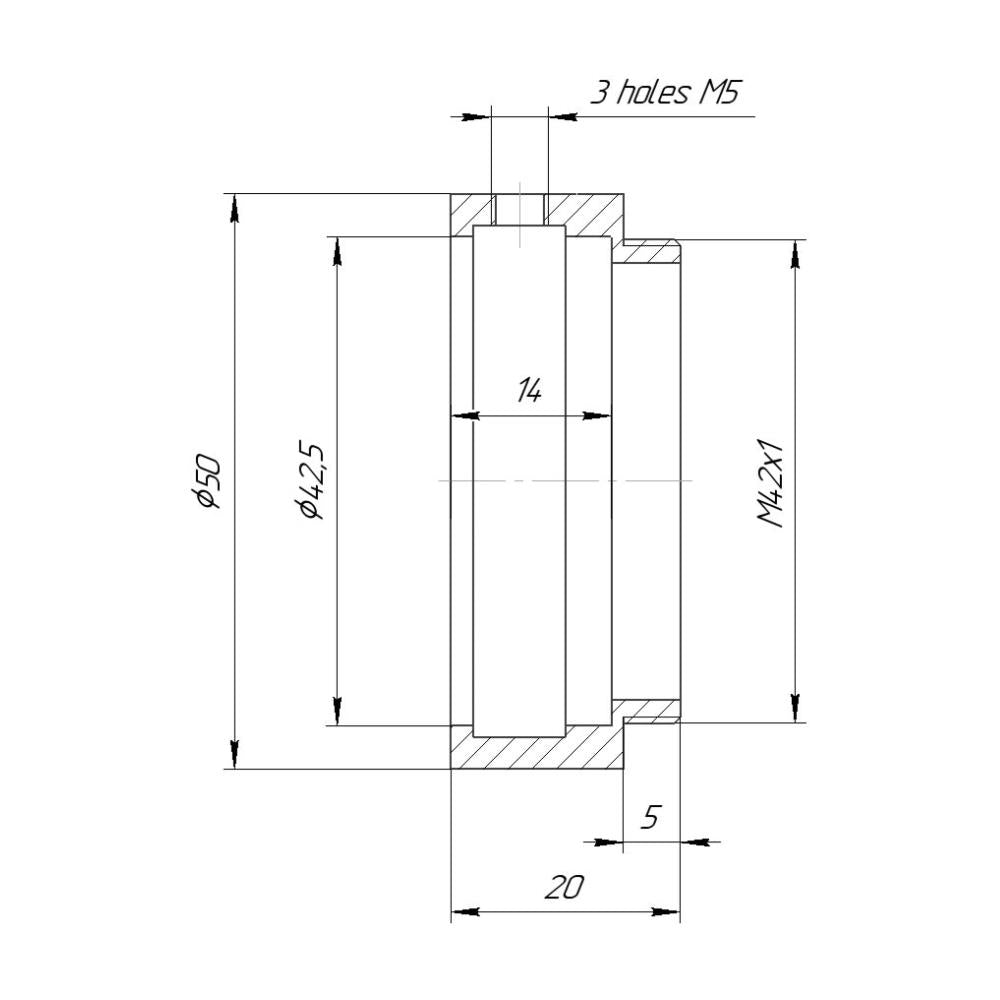

- Front side - 42.5mm inner diameter

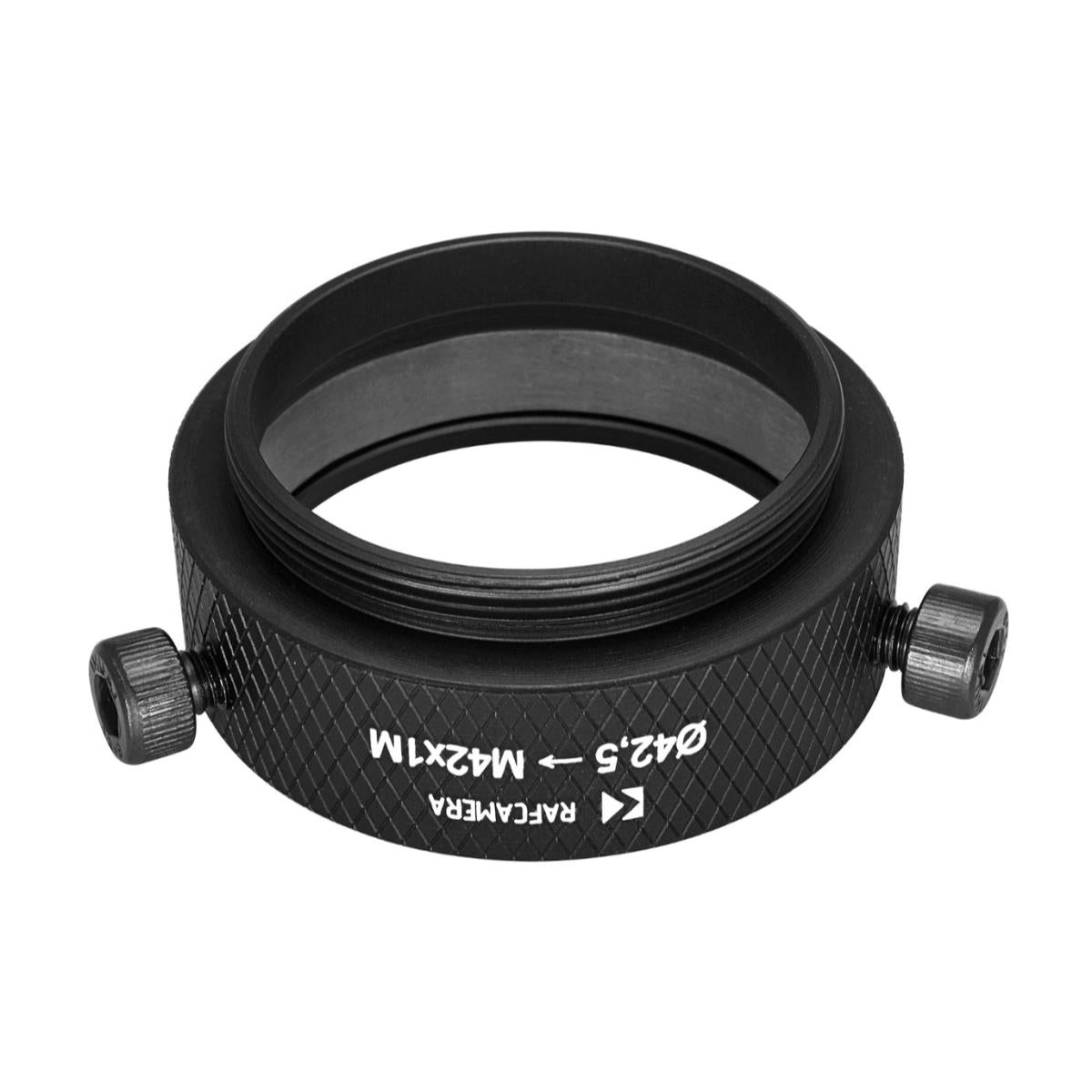

- Rear side - M42x1 male thread

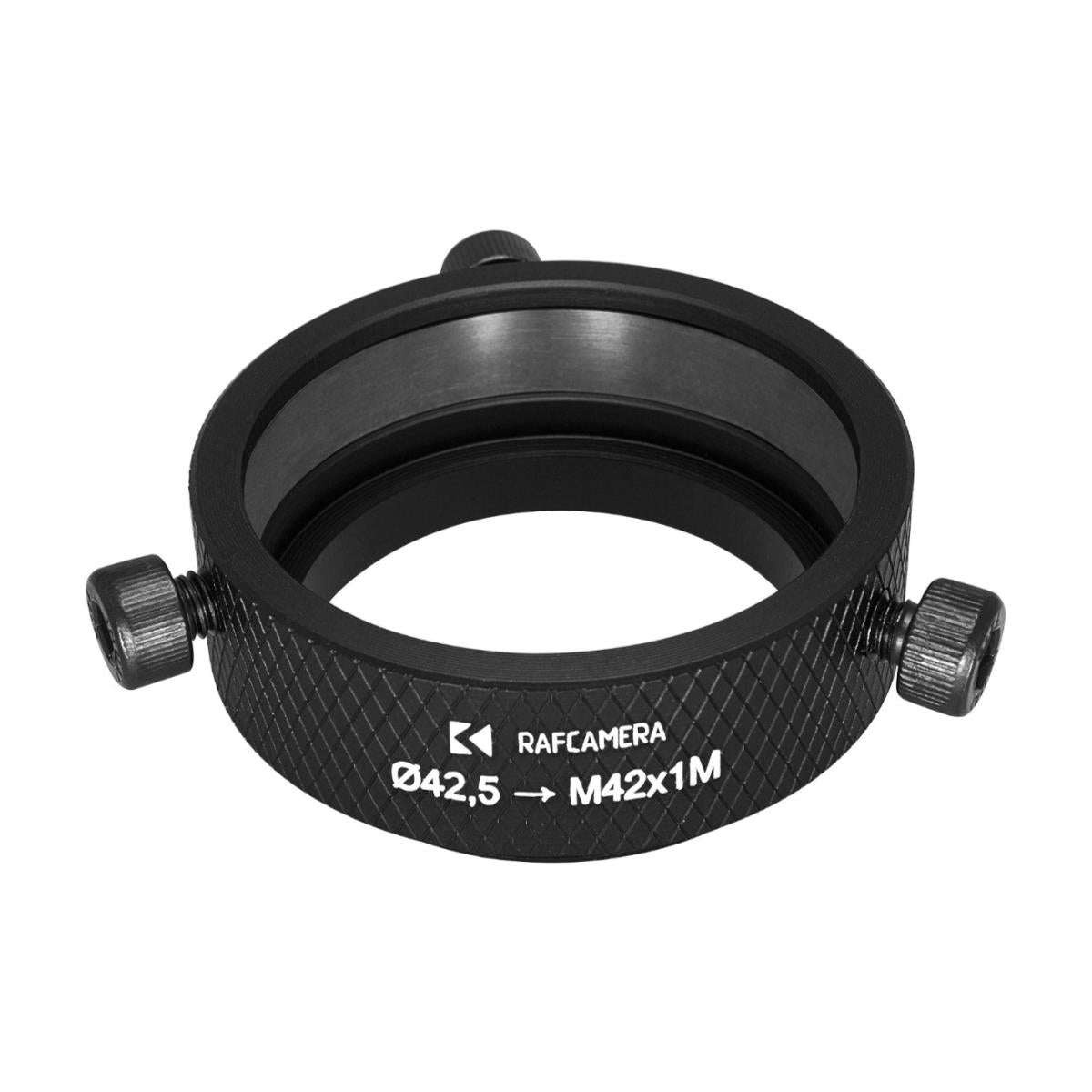

This adapter allows using projection lenses with 42.5mm rear diameter on focusing helicoids with M42x1 thread.
A lens is secured with 3 thumb screws (or set screws, delivery set may vary).
Improvement over previous version is intermediate flat spring to protect a lens body from damage by screws.
Some compatible lenses are:
- Zeiss talon/supertalon/p-sonnar
- Leica/leitz colorplan/supercolorplan/elmaron
- Braun ultralit pl
- Isco projar/cinelux/ultra mc
- Schneider ultrastar
and many others.
Adapter is made of high quality aluminium alloy.
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
Details
- Front side - 42.5mm inner diameter
- Rear side - M42x1 male thread
This adapter allows using projection lenses with 42.5mm rear diameter on focusing helicoids with M42x1 thread.
A lens is secured with 3 thumb screws (or set screws, delivery set may vary).
Improvement over previous version is intermediate flat spring to protect a lens body from damage by screws.
Some compatible lenses are:
- Zeiss talon/supertalon/p-sonnar
- Leica/leitz colorplan/supercolorplan/elmaron
- Braun ultralit pl
- Isco projar/cinelux/ultra mc
- Schneider ultrastar
and many others.
Adapter is made of high quality aluminium alloy.
More Information
| Adapter Front Side | 16-SP |
| Adapter Rear Side | Leica L mount |
| Material | Aluminium |
| Manufacturer | RafCamera |
| Advantages |
|
