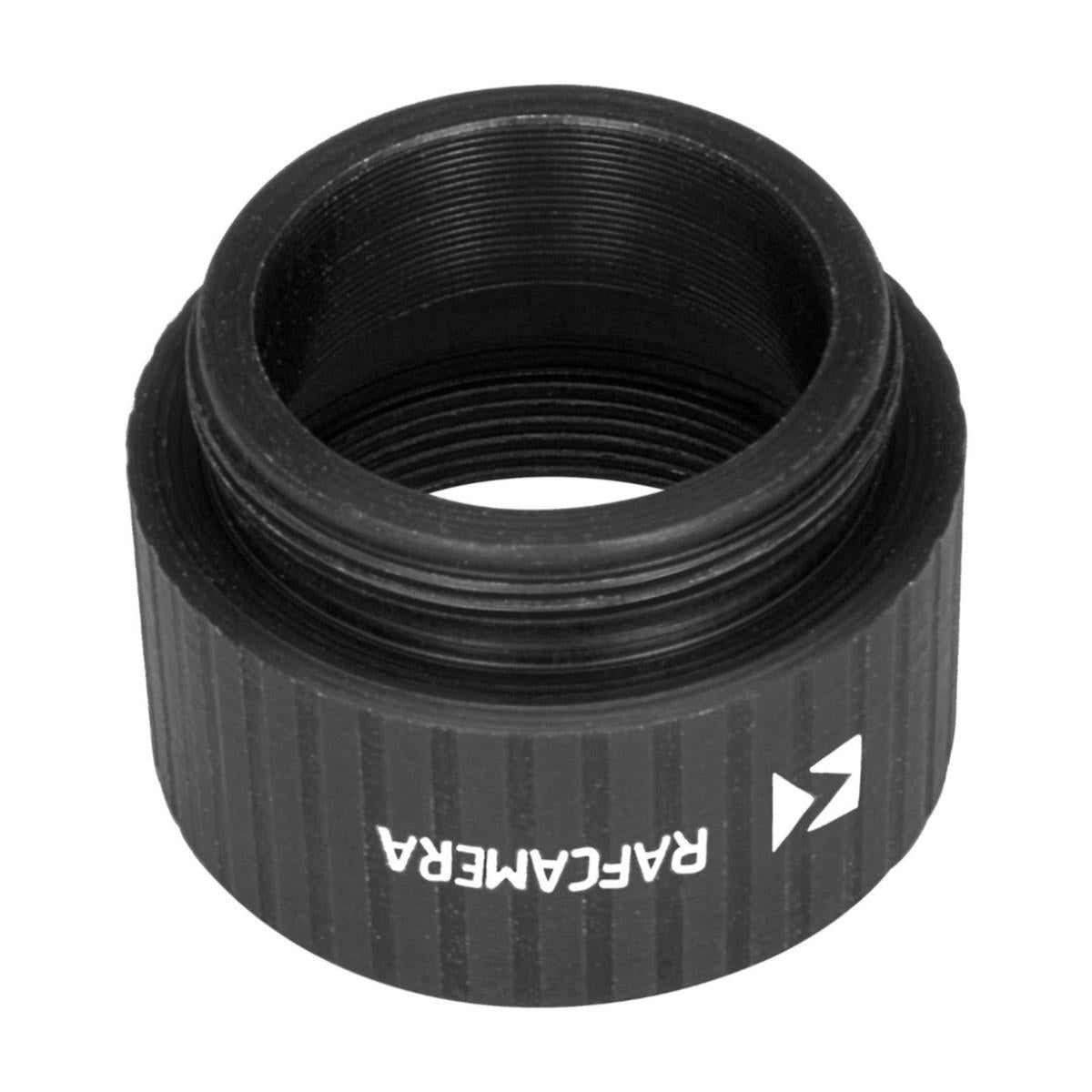

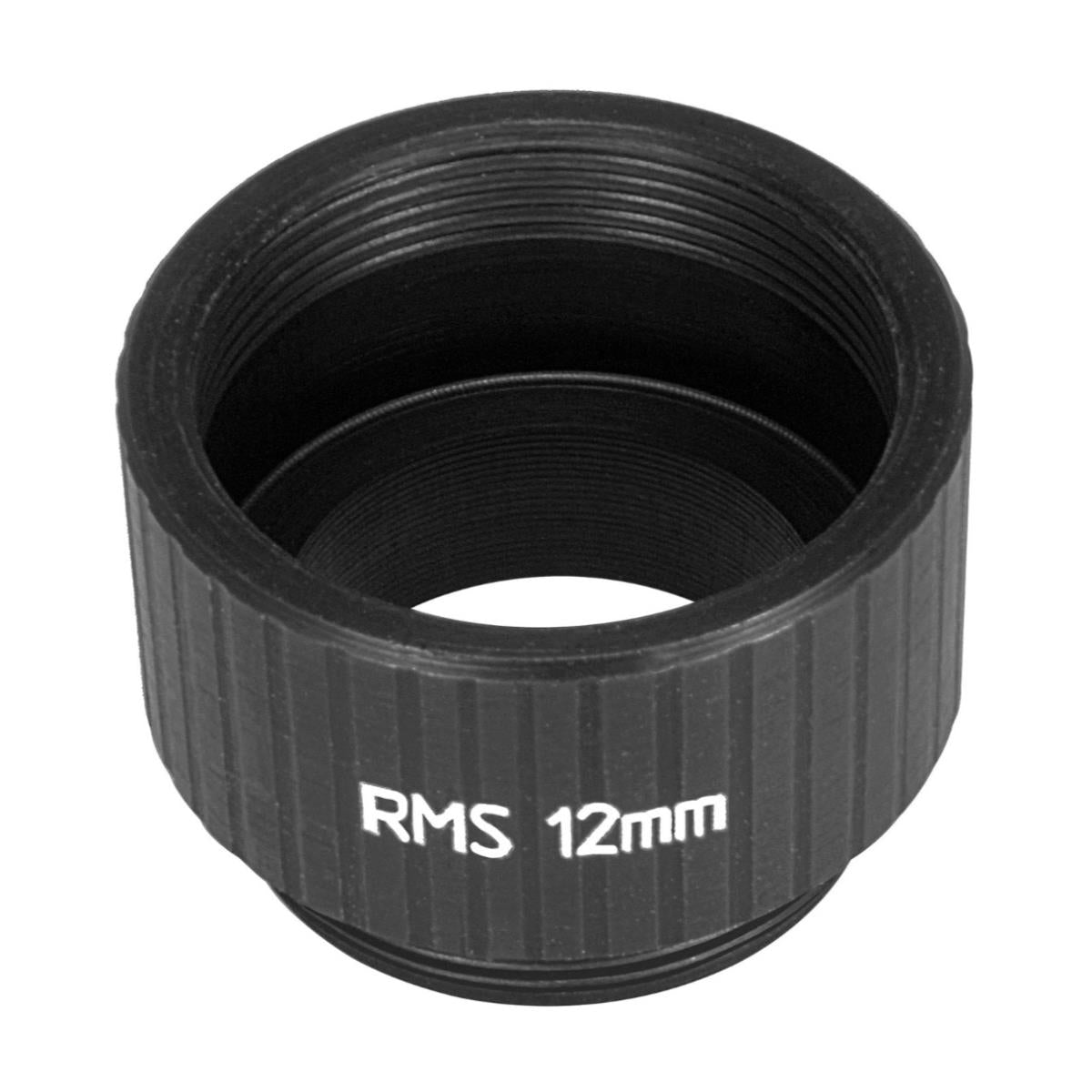

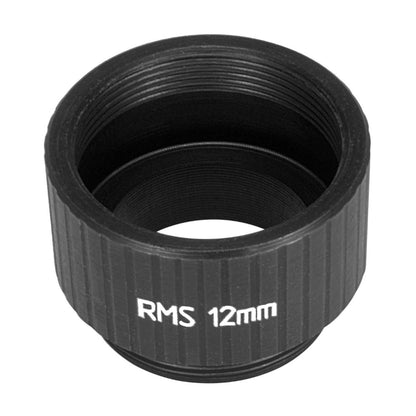

12mm adapter to match parfocal heights of DIN and RMS objectives, black

1 3
★ ★ ★ ★ ★
41 Reviews
€30,90 EUR
€30,90 EUR
Sale Sold out

In stock

SKU#:763461171398
If you need to mix DIN (45mm parfocal height) and RMS (about 33mm parfocal height) objectives on the same turret, you can add these adapters to RMS objectives, so all your mounted objectives will have same 45mm parfocal height.
View full details

  • Details
  • More Information
  • Reviews
  • Questions

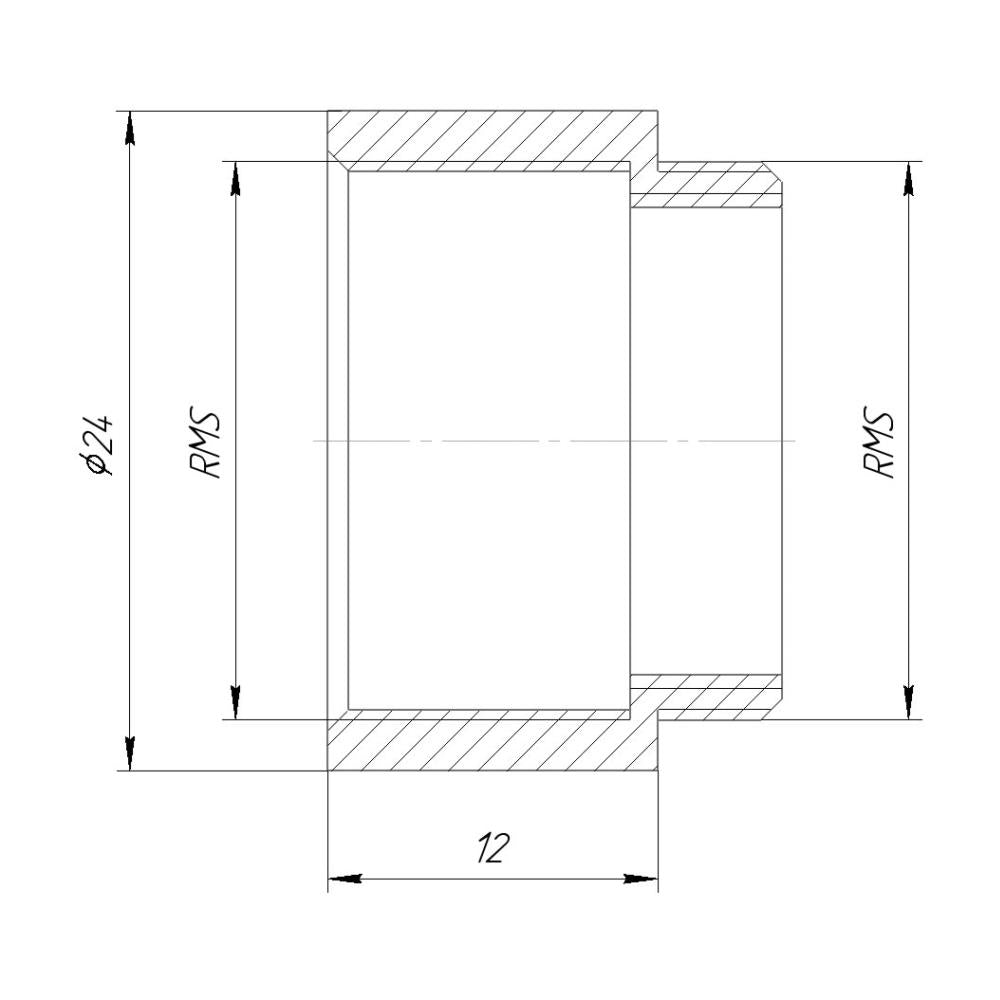

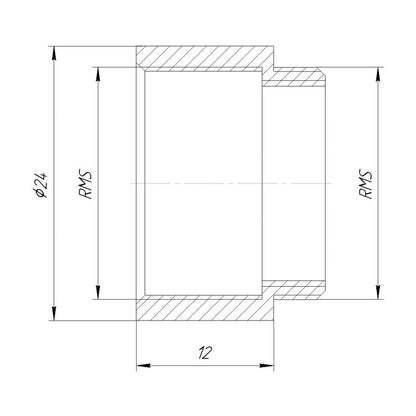

  • Front side - RMS (0.8″ - 36 tpi) female thread
  • Rear side - RMS (0.8″ - 36 tpi) male thread
  • Max. diameter - 24 mm
  • Distance between flanges - 12 mm
  • Weight - 6 g
  • Machined of high quality aluminium alloy

If you need to mix DIN (45mm parfocal height) and RMS (about 33mm parfocal height) objectives on the same turret, you can add these adapters to RMS objectives, so all your mounted objectives will have same 45mm parfocal height.

This way you will need just micro adjusting after switching from one objective to another.

Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.

Plain text only. HTML is not allowed.

Details
  • Front side - RMS (0.8″ - 36 tpi) female thread
  • Rear side - RMS (0.8″ - 36 tpi) male thread
  • Max. diameter - 24 mm
  • Distance between flanges - 12 mm
  • Weight - 6 g
  • Machined of high quality aluminium alloy

If you need to mix DIN (45mm parfocal height) and RMS (about 33mm parfocal height) objectives on the same turret, you can add these adapters to RMS objectives, so all your mounted objectives will have same 45mm parfocal height.

This way you will need just micro adjusting after switching from one objective to another.

More Information
Adapter Front Side 16-SP
Adapter Rear Side Leica L mount
Material Aluminium
Manufacturer RafCamera
Advantages
  • Design: Many of our products were inspired by customers, and have great application value.
  • Material: Aluminium alloy 2024 (used in aviation and space industry). It is light and durable.
  • Technology: Cutting from solid bars provides the highest possible product quality.
  • Tolerances: A bit tight fit is better than too loose fit for imaging equipment.
